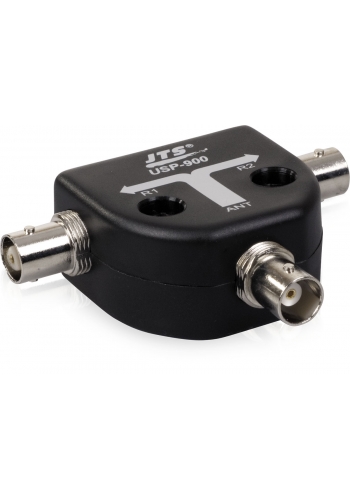

UHF Passive Antenna Splitter
The USP-900 is a passive antenna splitter that accepts 1 inputs and passes through to 2 outputs.
Code: | 81357 |
Net Dimension (WxHxD): | 72.2 x 23.6 x 54.9 |
Full Frequency Band: | 470-870MHz |
RF Carrier Frequency Range: | 10-1,000MHz |
VSWR(Voltage Wave Standing Ratio): | 1.2 |
Impedance: | 50Ω |
Isolation: | 20dB |
Insertion Loss: | 2dB |
