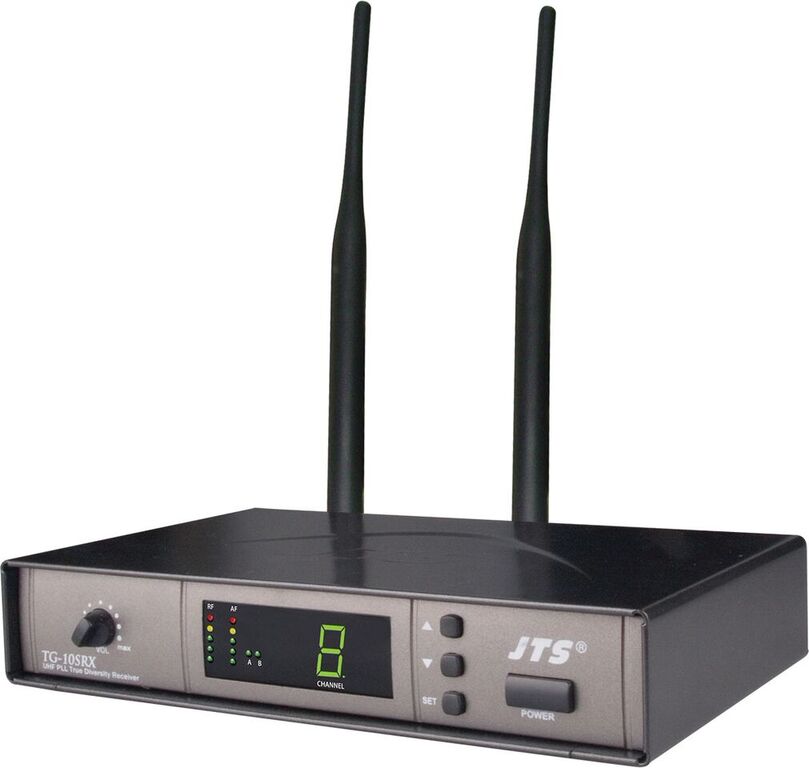

Tour Guide Desktop Receiver
The TG-10SRX, true diversity receiver is compatible with TG-10T. It can receive the signal from TG-10T and deliver it for PA, recording and other processes.
| Code: | 81335 |
| Net Dimension (WxHxD): | 212 x 40 x 125mm |
| Frequency Preparation: | PLL Synthesized Control |
| Carrier Frequency Range: | 606.5-614MHz |
| S/N Ratio: | >105dB |
| T.H.D: | <0.6% @ 1kHz |
| Display: | LED |
| Display Contents: | AF Level, Channel |
| Controls: | Power On/Off, Channel, Audio Level |
| Audio Output Level: | -12dB |
| AF Output Impedance: | 600Ω |
| Squelch: | Pilot Tone & Noise Mute |
| Operation Voltage: | 12-18V DC, 350mA |
| Output Connector: | 1x XLR Balanced Socket, 1x 6.3mm Unbalanced Jack Socket |
