JS-22

    JS-22

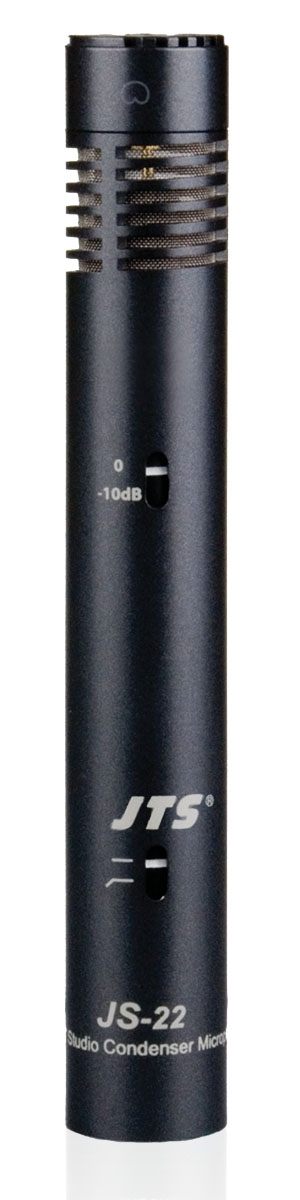

    1/2" Studio Condenser Microphone

  • Overview
  • Features
  • Specifications
  • Video
Good for:
* Acoustic guitar
* Acoustic bass
* Strings
* Piano
* Woodwinds
* Orchestra
* Stereo pick-up
* Ensemble vocals
* Cymbals
Based on the successful experience of JS-1 series, the JS-22 is designed for instrument miking from strings to percussions. The JS-22 is built on a solid brass with accurate processing. The 1/2” golden plated diaphragm is manually assembled by JTS craftsman. The precise designed circuit with low cut and pad feature provides flat response. This microphone royally reproduces any kinds of instruments and vocals.
Code: 81445
Net Dimension (WxHxD): 22.5mm (W) x 150.5mm (H)
Microphone Type: Condenser
Frequency Response: 20Hz - 20kHz
Sensitivity: -36±3 dB* (15.8mV) 0dB=1V /Pa,1kHz
Directional Pattern: Cardioid
Attenuation Switch: -10dB
Low Frequency Roll-Off: 80Hz
Impedance: 100Ω
Max. SPL for 1% T.H.D: 140dB
S/N Ratio: 78dB
Power Supply: 36-52VDC phantom power
Current Consumption: ≤3mA
Output: 3 Pin Male XLR
