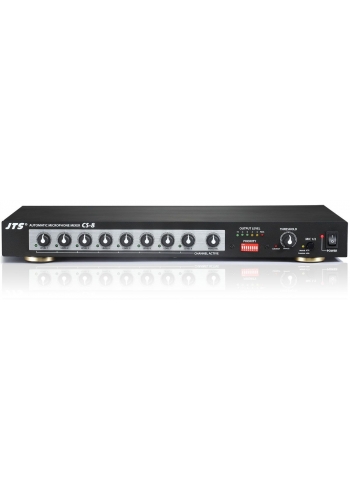

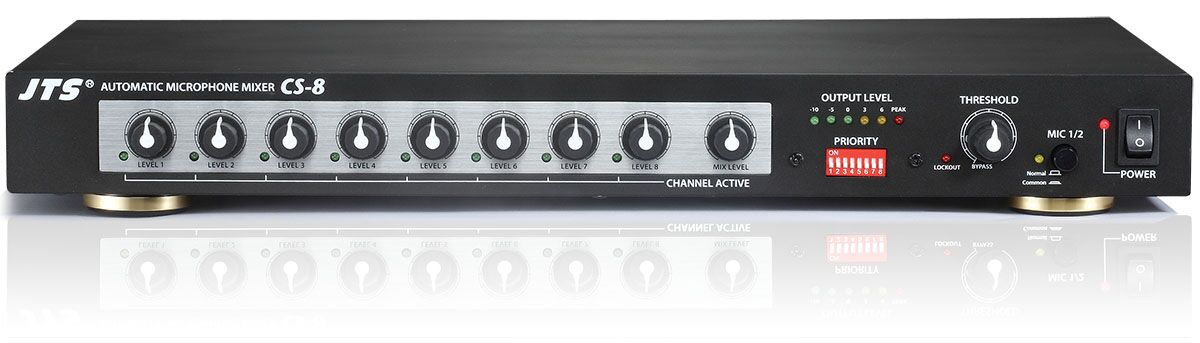

    Automatic Microphone Mixer

  • Overview
  • Features
  • Specifications
The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination.
The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms.
Full feature design includes :
* Daisy-chain with unlimited number of the mixer
* Three operation modes: one-channel-at-a time, all active or override
* Switchable inputs accept microphones or line level devices
* Switchable output levels between mic. and line level
* Individual gain control and phantom power for each channel
* Last In stays on for continuous ambience sound
* Control voltage provided to trigger external device such as speaker switching and camera switching
Code: 81618
Net Dimension (WxHxD): 420 x 44 x 198.5mm
Net Weight: 2.25kg
Type: XLR
Mic: 4.7KΩ
Line: 20KΩ
Type: XLR
Mic: 300Ω
Line: 200Ω
Max Output Level: >17dB
Max Gain: >70dB
Frequency Response: 35Hz - 20kHz
THD: <0.06%
S/N Ratio: >70dB
Input Attenuation: -50dB
Phantom Power: +48v
Mic In Attenuation: -10dB / -15dB / -20dB
Output Attenuation: -50dB
Voltage Output: +4VDC 0.3V
Power Supply: 18VDC, 1A
Power Consumption: 13.5W
